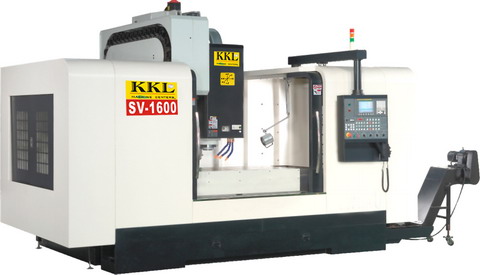

CNC Vertical Machining Center SV-1600
dot *Adopting German Standard VDI 3441.
*Installing Euroscale Machine Frame.
*Inverted-Y Column to Extend Support Distance.






SPECIFICATIONS

Model

-

Unit

SV-1600

Travel

X-axis

mm (inch)

1600



Y-axis

mm (inch)

850



Z-axis

mm (inch)

700



Spindle nose to table

mm (inch)

200-900



Spindle center to column

mm (inch)

910

Table

Size

mm (inch)

1700 x 815



               Size of T-slot             (Width x Distance x No.)

                               mm x mm x no.

                                               18 x 150 x 5



Max loading capacity

kg

2100

Spindle

Speed

rpm

60-6000



Transmission

type

Gear



Motor

kw

15 (18.5)



Taper

type

BT50

Rapid feed rate X/Y/Z axis



m/min

15/15/12

Cutting feed rate



m/min

1-7

Automatic tool changer

ATC type

type

Armless (Arm)



Tool capacity

pc

24 (32)



Max. tool weight

kg

18



Max. tool length

mm (inch)

350



Max. tool diameter

mm (inch)

Æ125

Miscellaneous

Air source

kg/cm2

6



Machine height

mm (inch)

3115



Machine area (Length) x (Width)

mm (inch)

4665 x 3560



Machine weight

kg

14200



Positioning

mm (inch)

VDI 3441



Repeatability

mm (inch)

VDI 3441



Slideway

type

4 Boxways

                 Note:Symbol (  ) represents Optional Accessories.
                             Design and specification are subject to change prior notice.

      STANDARD ACCESSORIES                                      OPTIONAL ACCESSORIES
      *Armless type tool changer                                             Spindle automatic oiling device
      *Full splash guard                                                            Arm type tool changer
      *Spindle air blast system                                                  4th axis NC rotary table
      *Heat exchange in control box                                          Chip conveyor
      *Spindle BT40-6,000rpm                                                Spindle speed 8,000/10,000rpm
      *Working light                                                                  Direct couple spindle 10,000/12,000/15,000rpm
      *Coolant pump                                                                Built-in 16,000rpm
      *Operator indication lamp                                               Optical scale
      *Spindle arbor cleaning                                                    *Transformer
      *Tool box                                                                         PL waterproof fluorescent worklight
                                                                                                 *BED shower
