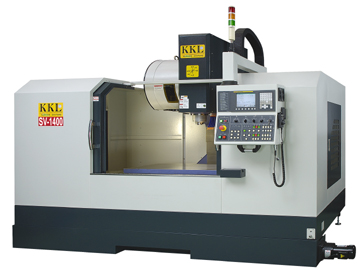

KING KIANG LI MACHINERY INDUSTRIAL

Model	-	Unit	SV-1400
Table	Work Area	mm(inch)	1,350x600
	T-slot	mm(inch)	5x18
	Max. Loading	kg	1,295
Travel	X/Y/Z Travel	mm(inch)	1400/625/625
Distance	Spindle Center to Column Box Ways	mm(inch)	660
	Spindle Nose to Worktable Surface	mm(inch)	120~745
	Floor to table top	mm(inch)	900
Spindle	Taper	BT#	40 (50 optional)
	Speed	rpm	65-8,000
	Motor	kw(HP)	7.5/11kw (10/15HP) 11/15kw (OPT.)
Axis motor X Y Z	Cutting feedrate	mm/min	1-10,000
	Rapid feedrate X/Y	mm/min	20,000
	Rapid feedrate Z	mm/min	18,000
Ballscrew on 3 axis	Dia. X pitch(X.Y.Z axis)	mm(inch)	40 x p10
Automatic tool change	Type of ATC		Armless /Arm (OPT.)
	no. of ATC (OPT.)	tools	24/30
	Max. tool(dia. /length)	mm(inch)	90/150
	Max. tool weight	kg	8
	Max. tool length	mm(inch)	250
Accuracy	Positioning	mm(inch)	VDI 3441
	Repeatablity	mm(inch)	VDI 3441
Miscellaneous	Machine net weight	kg	8,500
	Power required	kva	25
	Pneumatic required	kg/cm²	6

Note：We reserve the right to modify the design and specifications without notice in advance.

FOUR BOX WAY DESIGN, RAPID SPEED MAX UP TO 24M/MIN.

WIDER SLECTION CNC CONTROLLERS: HEIDENHAIN / FANUC / SIEMENS / MITSUBISHI.

STANDARD ACCESSORIES： OPTIONAL ACCESSORIES：

＊Automatic lubrication system ＊CE regulation

＊Air blast through spindle ＊Coolant through spindle (CTS)

＊Spindle air purge system ＊Adding 4th axis interface

＊Screw type chip conveyor ＊CNC rotary table

＊Full splash guard ＊Spindle BT40-10,000/12,000/15,000 rpm

＊Rigid tapping ＊Spindle BT50-6,000/8,000/10,000 rpm

＊Auto power off ＊Linear scale

＊Heat exchanger in control box ＊Oil mist unit

＊Work lamp ＊Arm type ATC (24 tools, 30 tools)

＊3 color light ＊Link type chip conveyor and bucket

＊Tool box ＊ZF 2 speed gear box

＊Armless (Umbrella) ＊Tool length measure mount

＊20T Type ACT (20 Tools) ＊Work piece measurement

＊Leveling bolts & blocks ＊Transformer

＊Spindle oil cooler unit

＊RS-232 interface

＊Operational manual & electric drawing equipment

＊Remote manual pulse generator

KEY FEATURES

＊More 20 percent of weight (total weight 8.2 tons) than other similar machining centers.

＊30 percent of rigidity in the casting of machining center has been enhanced.

＊Adopting German Standard VDI 3441 & Euroscale Machine Frame.

＊Inverted-Y Column to extend support distance.

＊Saddle structure passes through 4 axes.

＊Super Four hard Boxways and A-shape box Base.

＊Column is constructed in the form of 米-shape to achieve strong rib.
