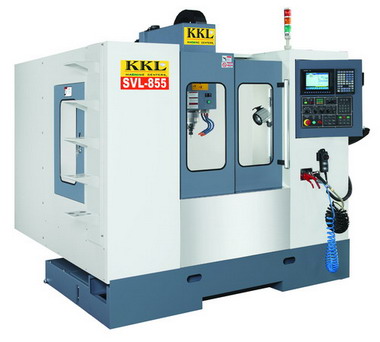

CNC Vertical Machining Center SVL-855
dot *Adopting German Standard VDI 3441.
*Installing Euroscale Machine Frame.

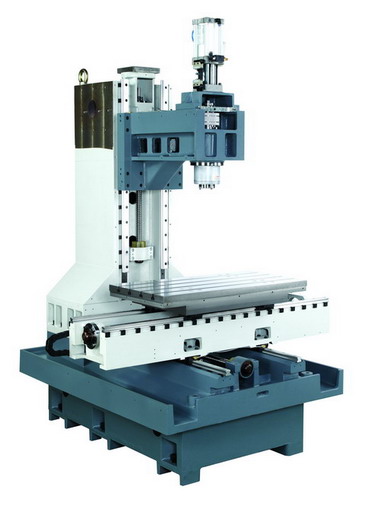

*Inverted-Y Column to extend support distance.




         SPECIFICATION

Model

-

Unit

SVL-855

Travel

X-axis

mm (inch)

850



Y-axis

mm (inch)

550/ (600)



Z-axis

mm (inch)

550/ (600)



Spindle nose to table

mm (inch)

120-670



Spindle center to column slideway

mm (inch)

610

Span

X-axis /width

mm (inch)

325 / #35



Y-axis /width

mm (inch)

650 / #35



Z-axis /width

mm (inch)

412 / #45

Table

Size

mm (inch)

1,000x550



T-slot (width x no. x distance)

mm (inch)

18x4x125



Max load

kg

500

Spindle

speed

rpm

60-8,000



Transmission

type

Belt



Motor

kw

5.5/7.5



X/Y/Z Axis servo motor

kw

2/2/2



Spindle nose taper

type

BT40



Bearing diameter at front spindle

mm (inch)

70

Speed

Rapid feed rate of X/Y/Z

m/min

36/36/30



Cutting feed rate

m/min

1-10

Automatic tool changer

ATC type

-

Armless/ (Arm)



Tool capacity

tools

20/ (24)



Max. tool weight

kg

7



Max. tool length

mm (inch)

250



Max. tool diameter

mm (inch)

75



Tool to Tool

sec.

1.8

Miscellaneous

Air source

kg/cm2

6



Occupied space (L)x(W)x(H)

mm (inch)

2,800x2,200x2,500



Machine weight

kg

5,800



Slideway type

-

Linearway on X/Y/Z

                                      Note:Design and specification are subject to change prior notice.
                                                  Symbol ( ) represents Optional Accessories.

                          STANDARD ACCESSORIES                                         OPTIONAL ACCESSORIES
                          *Armless (Carousel) type                                              Spindle automatic oiling device
                          *Full-chip enclosures                                                     Arm type tool changer
                          *Spindle air blast system                                                4th axis NC rotary table
                          *Heat exchange in control box                                        Chip conveyor
                          *Spindle BT40-8,000rpm                                              Spindle speed 10,000/12,000rpm
                          *Working light                                                                Direct drive spindle 10,000/12,000/15,000rpm
                          *Coolant pump                                                              Built-in 16,000/24,000/30,000 rpm
                          *Operator indication lamp                                             Optical scale
                          *Spindle arbor cleaning                                                  *Transformer
                          *Tool box                                                                       PL waterproof fluorescent worklight
                                                                                                                   *BED shower
